Dongguan City Betterly New Materials Co., Ltd.

High Conductivity Printing Conductive Paste SF-8600

It is made of silver powder, resin, additives and solvents with excellent conductivity. It has excellent adhesion on ink layer, glass, ceramic, metal, PET, PC, PI and other substrates.

Get A Quote
Category: Low Temperature Conductive Paste
  • Product Features Of High Conductivity Printing Conductive Paste SF-8600

    • It is specially designed to meet the conditions of screen printing. It has the characteristics of good conductivity, wide substrate versatility, strong adhesion, good solderability, and good ring test reliability.

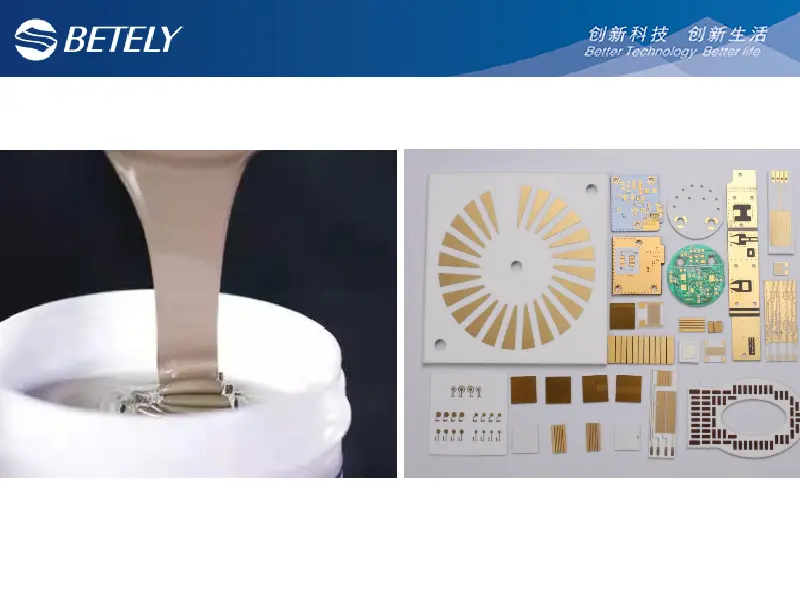

    • Typical applications: 5G terminal antennas, vibrator antennas, and non-thermal sensitive substrates that require high conductivity on the surface


  • Product Parameters Of High Conductivity Printing Conductive Paste SF-8600

    Model No.SF-8600
    Solid content (wt%)83±2
    Viscosity (25℃, mpa.s)
    30000~50000
    Firing process
    80℃/60min (Oven)
    OR ≥135℃/30min (Oven)
    80℃/30min (IR )
    OR ≥135℃/15min (IR)
    R (ρ/d)<8mΩ/□/25.4μm
    Adhesion (3M 600 tape test)
    5B
    Hardness (pencil test)≥2H
    Adhesion
    (Test at 5%NaCl, 40±5℃, PH:6.5-7.2)
    ≥4B
    Adhesion
    (Test in Hot water,80℃/30min)
    ≥4B


  • Using Manual Of High Conductivity Printing Conductive Paste SF-8600

    Screen type: polyester screen or stainless steel


    Screen Mesh: 300~420 mesh


    Latex thickness: 8-10μm


    Screen tension: 23-28N


    Scraper hardness: 75-85


    Cleaning agent: ethyl acetate, butyl acetate/isophorone


    1. Under normal circumstances, the slurry can be stored in a sealed room at room temperature. Storage temperature is about 20±5℃
    2. The temperature must be equilibrated at 20℃~25℃ before taking it out in the refrigerated state, and the equilibration time is ≥12h.
    3. Keep the silver paste packaging tank in a sealed state during the balancing process. After returning to room temperature, open the can and use it.
    4. The paste should be fully stirred evenly before printing, and the screen should be clean and dry.
    5. It is recommended that the ambient temperature be controlled at 20~25℃, and the humidity should be ≤60%.
    6. There is no need to add diluent before using the newly opened slurry, and it can be printed on the machine after it is fully stirred.
    7. After the slurry has been used and recycled for a long time, a thinner can be appropriately added to adjust the viscosity and fluidity (recommended addition amount is 1-3%).
    8. When printing, it is recommended to add paste successively to ensure the stability of paste viscosity.
    9. The unused silver paste cannot be stored in the open after recovery and must be sealed for storage.

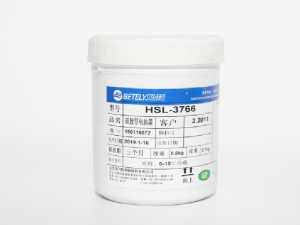

  • Package Of High Conductivity Printing Conductive Paste SF-8600

    High conductivity printing SF-8600 supplier


    1kg/bottle,2kg/bottle,15kg/bottle
