Right Angle Silicone BQ-1230HA/B

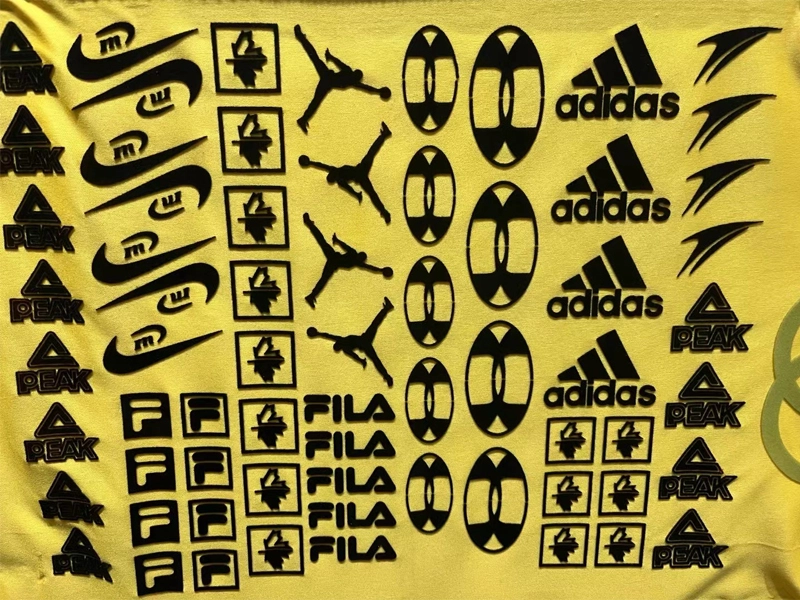

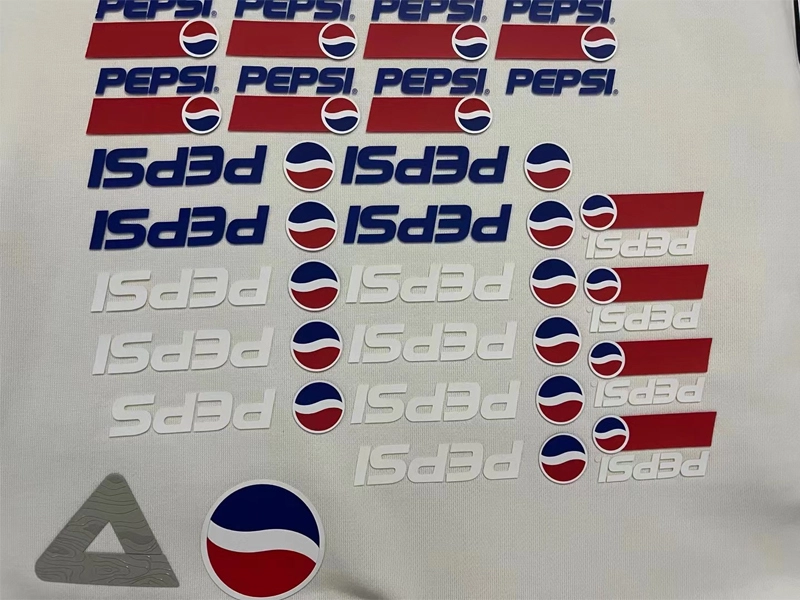

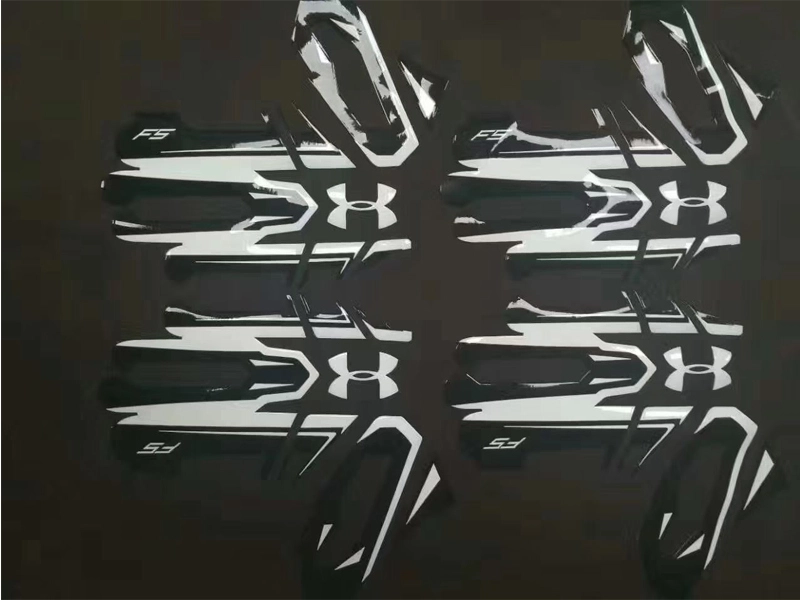

BQ-1230H A/B is mainly used for silicone screen printing, the printing effect has a strong sense of three-dimensional, screen printing up fast, soft touch, environmental protection, non-toxic and harmless.

Get A Quote
Category: Silicone for Garments/Fabric
BTL Products
Typical properties Use direction Package & Storage Handling precautions Disclaimer

  • Typical properties Of Right Angle Silicone BQ-1230HA/B

    Appearance

    translucence

    Addition ratio

    10:1

    viscosity/mPa.s

    150000-250000

    Hardness/A °

    28-32

    Tensile strength（MPa）

    ≥5

    Elongation（%）

    ≥500

    Tear strength（MPa）

    ≥7

    Curing condition

    120C °*7s





  • Use direction Of Right Angle Silicone BQ-1230HA/B

    Fully mix part A and B according to mix ratio of 10:1, then dilute the silicone with right dosage of thinner. Curing through the running table dryer, fire gun for heating curing or room temperature curing. Printing two times. The second printing should be done after the first printing surface is dry.

  • Package & Storage Of Right Angle Silicone BQ-1230HA/B

    1.     20kg/drum 、200kg/drum

    2.     Sealed storage place in ventilated, cool and dry environment

    3.     6months from production date




  • Handling precautions Of Right Angle Silicone BQ-1230HA/B

    1. Storage and use process, should avoid contact with organic matter containing nitrogen, phosphorus, sulfur, tin and other impurities.

    2. The matched silicone is not used up, need to be sealed and stored.


  • Disclaimer Of Right Angle Silicone BQ-1230HA/B

    The product parameters are measured by the laboratory and have a certain reference, please test and evaluate according to the specific situation before use.
