Dongguan City Betterly New Materials Co., Ltd.

Heat Curing Silicone Optical Adhesive BTL-5123AB

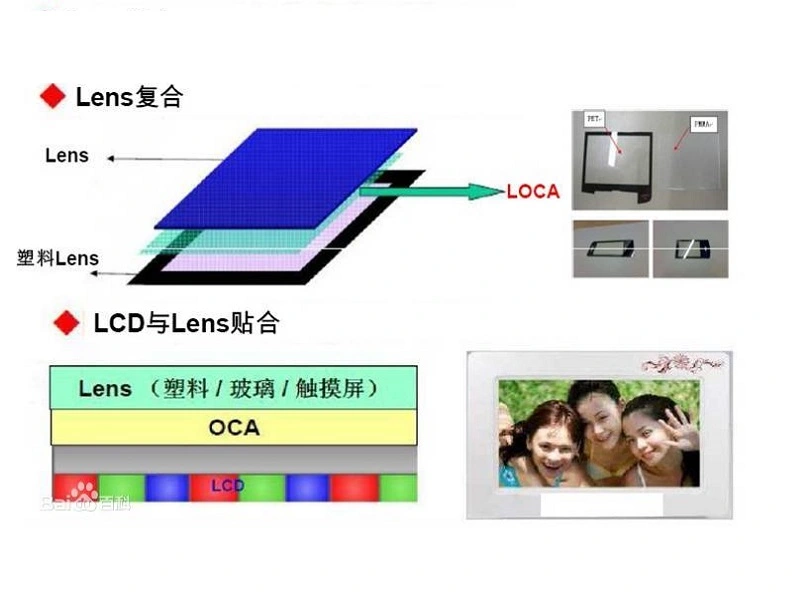

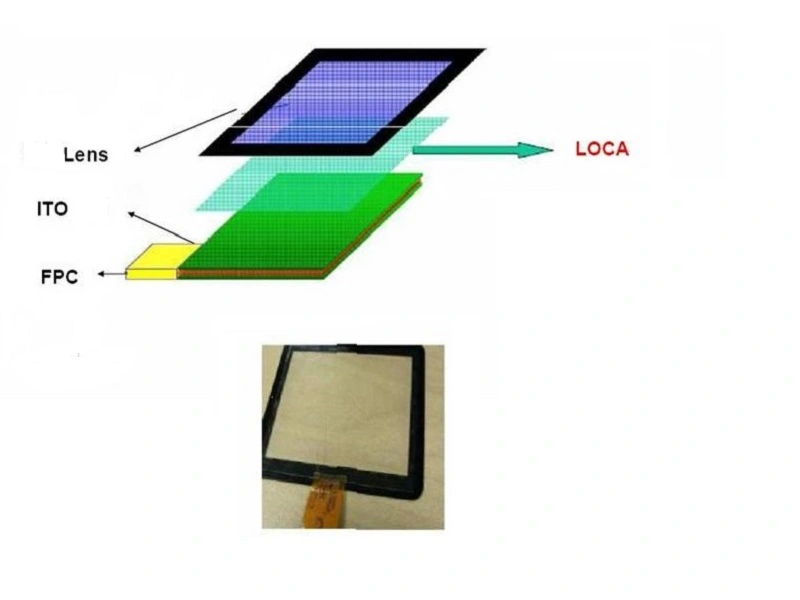

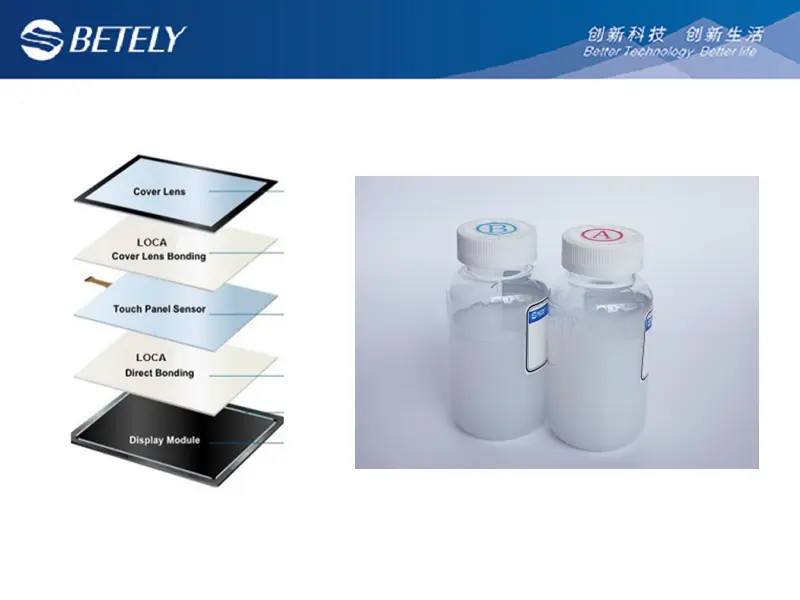

BTY-5123AB is a two-component addition heat-cured liquid silica gel, which is soft gel-like after curing. It has excellent yellowing resistance, UV aging resistance and low shrinkage. After curing, it has good initial viscosity and excellent adhesion to the substrate. It is mainly used for full bonding of touch screens, LCDs, etc.


Get A Quote
Category: Silicone Coating and Ink
  • Specification Of Heat Curing Silicone Optical Adhesive BTL-5123AB

    ProjectBTY-5123AB
    appearanceTransparent
    Mixing ratio (A: b)1:1
    Mixed viscosity (MPa. S)1000
    Refractive index1.407
    Density (g / cm3)0.97
    Operating time (min, 25 ℃)>25min
    Penetration (1 / 10mm)160-200
    Curing conditions60℃/30min
    G + G adhesion MPa>0.3
    Light transmittance (400nm)99%
    Volume shrinkage (%)<0.1
    Thermal shock, – 40 ~ 85 ℃, 1000hNo crack, shrinkage mark, and bubble
    High temperature and humidity,


    85% RH, 85 ℃, 1000h

    No crack, shrinkage mark, and bubble


  • Using Manual Of Heat Curing Silicone Optical Adhesive BTL-5123AB

    1. Surface treatment


    All sizing interfaces must be cleaned. During use and storage, this screen printing conductive ink must be ensured that there is no catalyst toxic substances such as phosphorus (P), sulfur (s), nitrogen (n), organic tin (SN), water, polyurethane and so on, so as to avoid curing hindrance and deterioration.


    2. Mix


    Component A is a cross-linking agent B contains a catalyst. The catalyst can make a gel containing crosslinking agent gel. Therefore, when using a scraper and other operation tools, we must avoid mixing with this component.


    3. Solidify


    The curing time of liquid silicone rubber is closely related to curing temperature and colloid thickness. The conventional mixing ratio of a / B is 1:1. The proportion deviation has a certain impact on the colloidal hardness. Increasing group A will improve the hardness of the cured product.

  • Precautions Of Heat Curing Silicone Optical Adhesive BTL-5123AB

    1. Before bonding, it is necessary to test the matching of glue with LCM and TP;

    2. After the bonding is good and cured according to the normal process, it needs to be placed at 25 ℃ for 7 days before environmental testing.

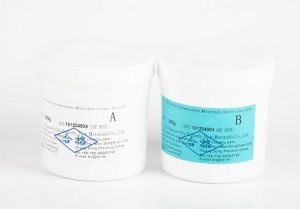

  • Package Of eat Curing Silicone Optical Adhesive BTL-5123AB

    conductive ink


    A: 5 kg/barrel; B: 5 kg/barrel

    A: 15 kg/barrel; B: 15 kg/barrel

    A: 180 kg/barrel; B: 180 kg/barrel


  • Product Certificate Of eat Curing Silicone Optical Adhesive BTL-5123AB

    skin sensitization test of silicone rubber
