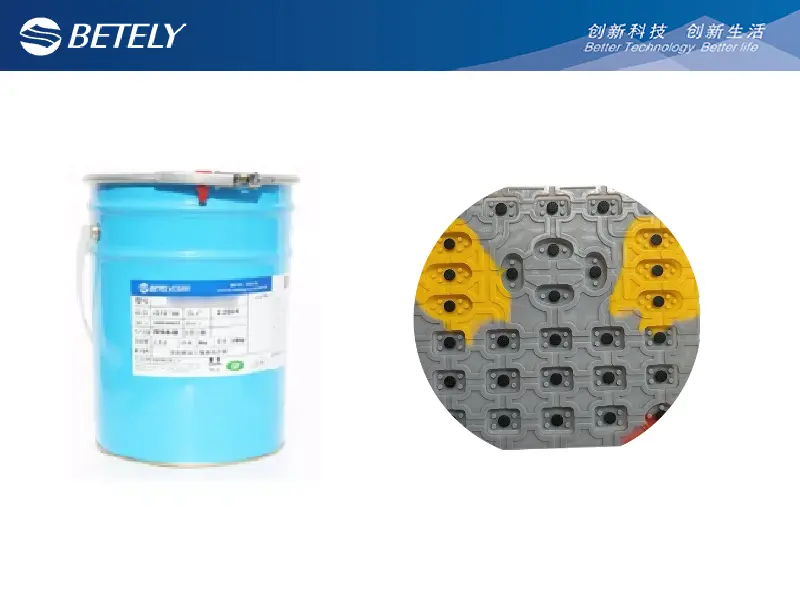

Potting Silicone Conductive Ink For Key HSL-T37XXX

Name: Potting Silicone Conductive Ink For Key HSL-T37XXX
Brand: Dongguan City Betterly New Materials Co., Ltd.
Price: 100 USD

It is a two-component ink suitable for silicone key products, suitable for conductive requirements.

Category: Silicone Coating and Ink

The Performance Parameters of Potting Silicone Conductive Ink For Key HSL-T37XXX

Items	Value
Printing Viscosity (rotational viscometer mPa, 25℃) mPa	400-600
Time of repose (min)	30-60
Force drying (180-220℃), Min	20-60

Testing parameters

Testing item	Testing condition and method	Result
Adhesion	The case method, Rubber 3M610#3 times	4-5B
Theory solid content	150℃/1.5h	45%-55%
Resistance after potting	By multimeter and dedicated board, 200g positive pressure, thickness about 10-15	<100Ω (S=4.0mm2)
Conductivity change	Conductive dry ink, 500g positive pressure, scratched by fingernail for 3 to 5 times	<200Ω
Hot and humid	80℃/98%RH	No abnormality in 48h

Handling Precautions of Potting Silicone Conductive Ink For Key HSL-T37XXX

Stir well after the container is opened.
Keep a good environment before pot printing. The non-dust treated workplace is suggested to avoid the dust effect on the product's surface. Please strictly keep the temperature below 35℃ and humidity between 55 to 75%, or the effect of the potted products will be affected.
Post vulcanization for spot printing silicone rubber objects is needed at 150℃ for at least 1 to 2 hours to avoid poor vulcanization of printed ink.
Cold store the ink and the remaining ink should be sealed and cold stored.
